Luxury 7 Seat 4WD

HAVAL H9 combines luxury materials throughout, outstanding fit and finish, leading technologies, space and attention to detail to provide a tranquil and comfortable experience for driver and passengers. It is also a supremely capable off-roader to take you off the beaten track and beyond.

APPEARANCE

A spacious seven-seater
salon, a combination of high
technology and absolute
safety

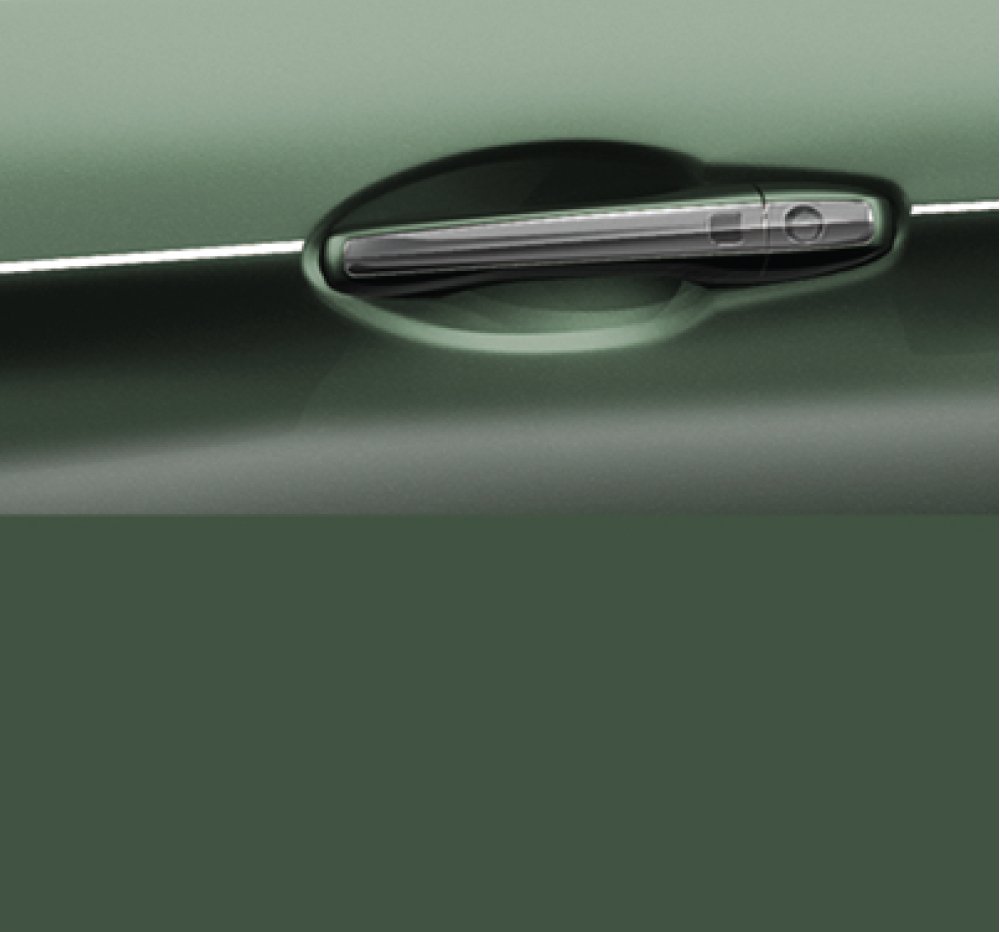

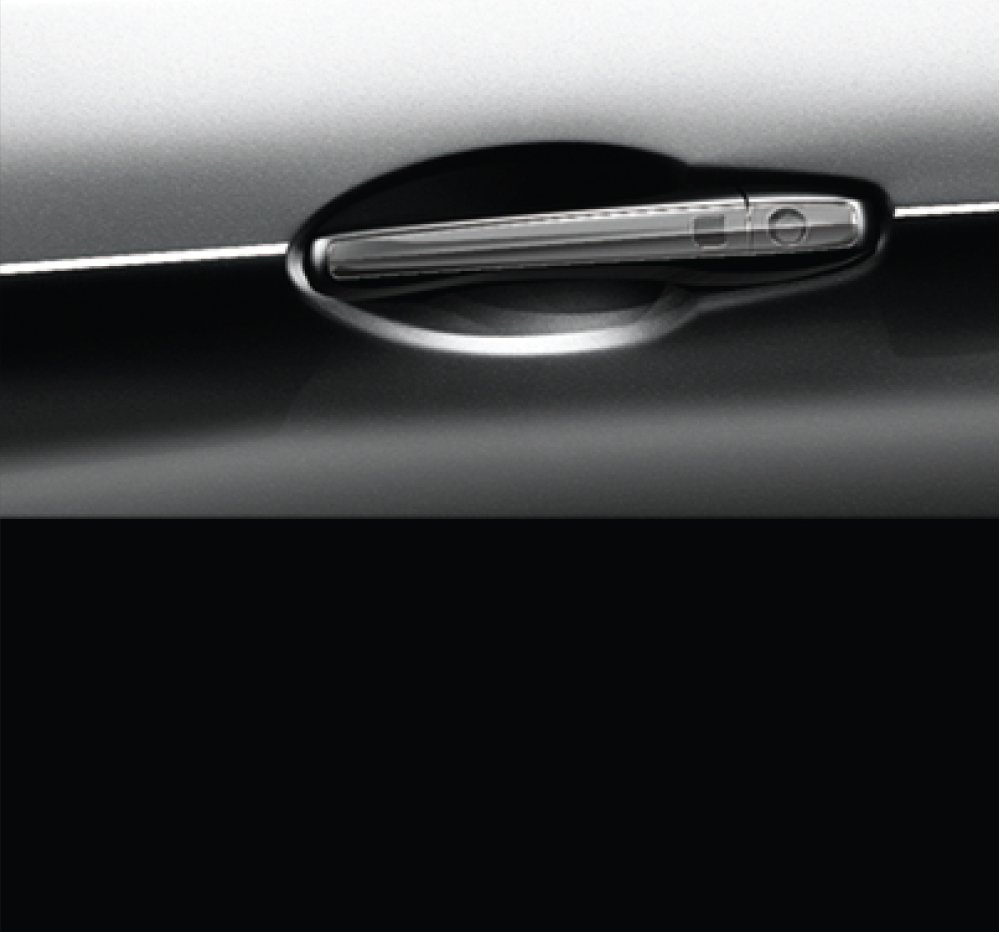

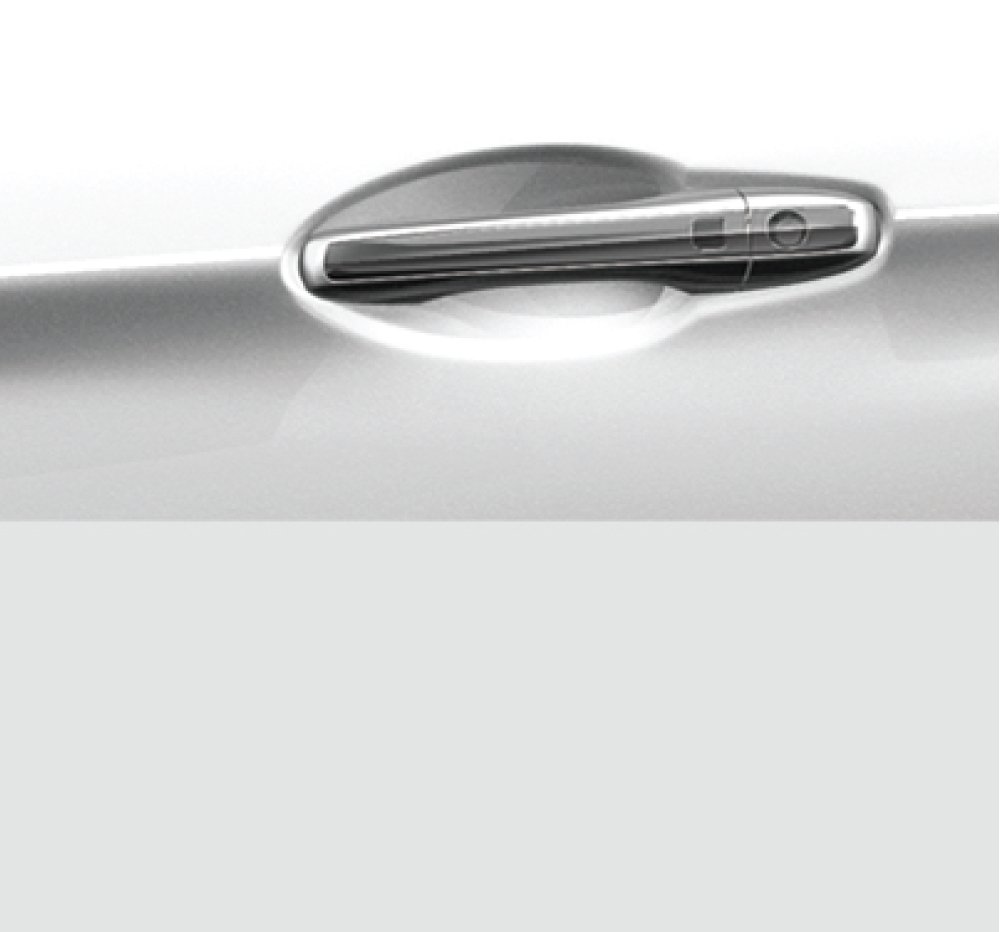

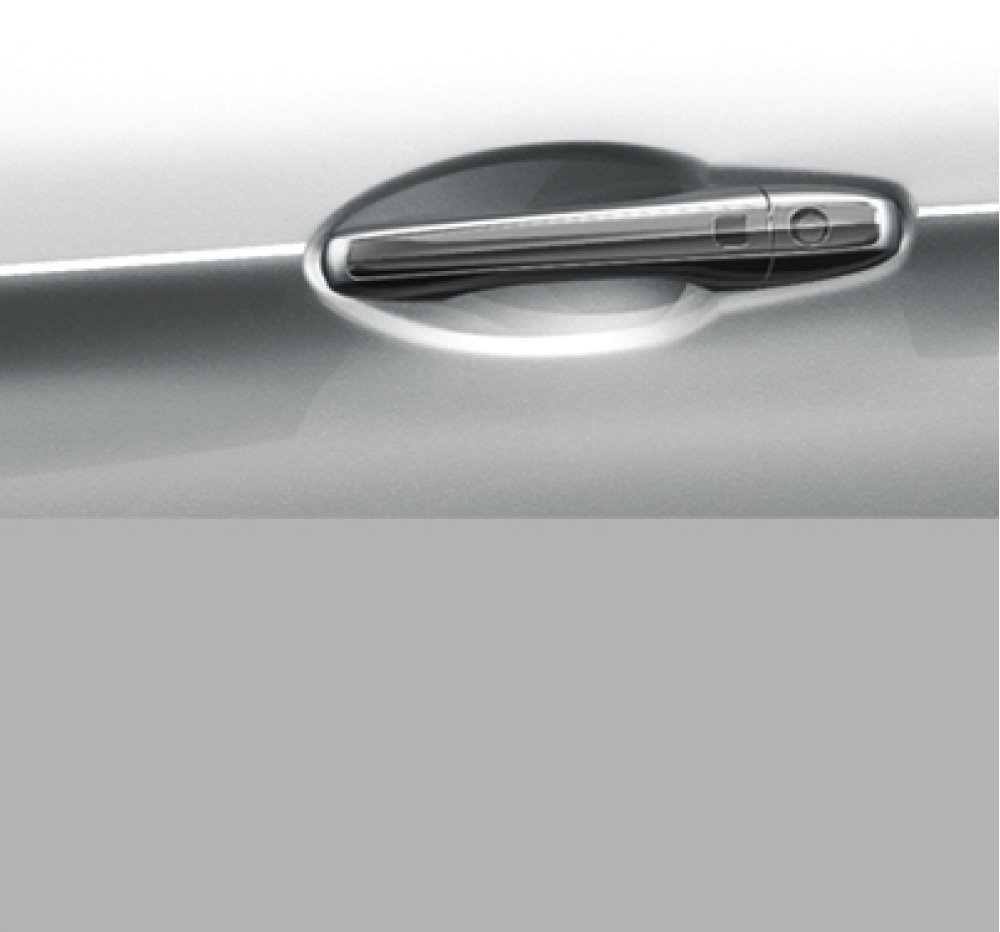

INTERIOR FINISHES

HAVAL H9 is available in a

variety of stunning colours

and finishes.

Creature Comforts

The HAVAL H9 offers class leading levels of quality, comfort and a number of functions for both the driver and passengers. On the LUX you will find Australian leather appointed seats. The LUX front seats are heated, ventilated, have under knee support and offer an adjustable massaging function.

Turbocharged Technology Delivers In All Conditions

Rated Power: 160kW/5500rpm
With 160kW of power at their disposal, drivers will always have ample performance for all driving conditions.

Maximum Torque: 324Nm/2000-4000rpm
Maximum torque comes on stream from a low 2000 rpm, meaning the HAVAL H9 delivers smooth, linear acceleration across the rev range. That means you will always have the power you need, when you need it.

Twin Counter-Rotating Balance Shafts:
This ensures the stable operation of the engine, improving fuel efficiency, reducing noise and prolonging engine life.

VVT Technology:
By accurately controlling the duration for valve opening and closing, Variable Valve Timing (VVT) increases the air intake volume of the engine and promotes better air induction efficiency. This in turn improves engine power and torque, resulting in lower fuel consumption and less exhaust emissions.

Silent Timing System:
The silent, low-resistance timing chain improves the working efficiency of the chain drive, reducing owner operating costs.

Hollow Sodium-Charged Exhaust Valves:
The H9 engine uses hollow sodium-charged valves to assist with cooling. At normal operating temperatures, the sodium within the valves turns to liquid, maintaining a lower and more stable temperature, drawing heat from the combustion chamber and improving operational stability.

High Technology and Safety

HAVAL H9 comes complete with a full suite of active and passive safety systems, working in harmony behind the scenes to provide the highest level of safety for driver, passenger and pedestrians alike. The safety package includes a strong frame incorporating a high performance safety shell, head protecting airbags for all three seating rows, front and rear parking sensors, a reversing camera with park assist, a tyre pressure monitoring system and driver status detection system.

The H9 body shell incorporates a high rigidity design, engineered to safely direct crash energy away from all occupants in the event of a collision.

The intelligent safety systems incorporated in H9 react in milliseconds to shelter all occupants with a suite of six airbags to provide maximum protection



TPMS

(Tyre Pressure Monitoring System)

Safety experts believe that incorrect tyre pressures contribute to around 80 per cent of accidents involving punctures, which is why tyre pressure monitoring systems are now mandatory in the US. Our TPMS keeps an eagle eye on tyre pressures and alerts you to any abnormality. It’s not only a great safety feature, driving with the correct tyre pressures also delivers a smoother ride and better fuel efficiency!

h9i
h9j
h9k
Introducing the H9 AWD SUV
The H9 Entertainment System

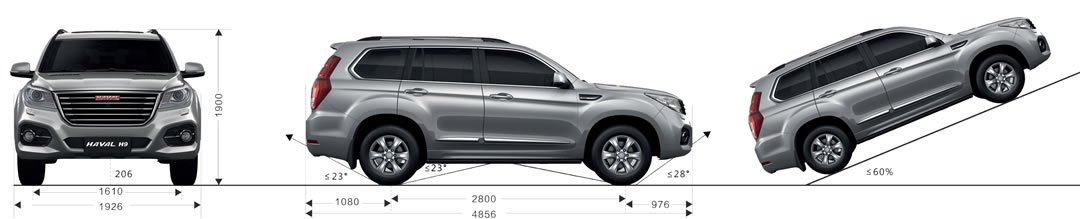

Dimensions

Characteristics of Haval H9

SPECIFICATIONS

 MODEL PREMIUM
Overall dimensions Length × width × height (mm) 4856 X 1926 X 1900
Wheelbase(mm) 2800
Wheel track(mm) 1610 (Front) / 1610 (Rear)
Displacement (L) 2.0
Engine Turbocharged 4-cylinder 16-valve, double VVT, direct injection
Maximum power (kW/rpm) 160 / 5500
Maximum torque (Nm/rpm) 324 / 2000 – 4000
Emission standard Euro V/EU V+
Transmission 6AT
Engine GW4C20
Driving Mode 4WD

EXTERNAL FEATURES

 MODEL PREMIUM
Aluminum Alloy Wheels red-dot
Shark Fin Roof Radio Antenna red-dot
Luggage Carrier (Matte Alloy) red-dot
Side Steps red-dot
Stainless Steel Rear Bumper Protector red-dot
Rain-sensing Automatic Wipers red-dot
Front Aero Wiper Blades red-dot
Tyres 265/65 R17

INTERNAL FEATURES

 MODEL PREMIUM
Black / Black Interior red-dot
Black / Beige Interior option
Leather Steering Wheel red-dot
4-Way Manually Adjustable Steering Wheel red-dot
Aluminium Floor Pedals red-dot
Multi-function Steering Wheel red-dot
Bluetooth Hands Free Link red-dot
Brightness-adjustable Instruments red-dot
12V Power Outlet red-dot
220V Power Outlet (150W) red-dot
Luggage Blind & hooks red-dot
Foot Rest red-dot
Stainless Steel Scuff Plate red-dot
Steering Wheel with Paddle Shifters red-dot
Multi-Function Trip Computer red-dot
Driving Condition Monitor red-dot

SEATS

 MODEL PREMIUM
Fabric Seats red-dot
2nd Row Arm Rest With Cup Holder red-dot
Manually Adjustable 2nd row Seat red-dot
60:40 Split Fold 2nd row Seat red-dot
ISOFIX Child Seat Fixing Device red-dot
50:50 Split Fold 3rd row Seat red-dot

ACTIVE / PASSIVE SAFETY

 MODEL PREMIUM
Dual SRS Airbags red-dot
Front Side Airbags red-dot
Side Curtain Airbags (3 rows) red-dot
Adjustable Front Seatbelts with Pretensioner red-dot
Second Row Seatbelts With Pretensioner red-dot
3 Point Seatbelts red-dot
Children Safety Lock red-dot
Reverse Radars (4 front+4 rear) red-dot
Reverse Camera with Dynamic Reversing Auxiliary Line red-dot
Remote Control Window Lock red-dot
Driver Condition Monitoring red-dot
Speed-sensing Central Door Lock red-dot
Automatic Collision Unlocking Function red-dot
Keyless Start & Entry System red-dot
Intelligent key red-dot
Remote Control Central Door Locking red-dot
Automatic Locking Return Function red-dot
Intelligent Door Locking Error-Proofing Function red-dot
Internal Fuel Flap Release red-dot
Auto Central Locking (Engine Running) red-dot
Car Locating Function red-dot
Collapsible Energy-absorbing Steering Column red-dot
TPMS (Tyre Pressure Monitoring System) red-dot
ABS (Anti-skid Brake System)+EBD (Electronic Brake Force Distribution) red-dot
TCS (Traction Control System) red-dot
BA (Brake Assist) red-dot
ESP (Electronic Stability Program) red-dot
HAC (Hill-start Assist Control) red-dot
RMI (Roll Movement Intervention) red-dot
HDC (Hill Descent Control) red-dot
Cruise Control System red-dot
Electronic Parking Brake red-dot
Auto Hold red-dot
Electronic Differential Lock red-dot
Intelligent Electric 4WD (AUTO2H4H4L) red-dot

IMMOBILISER

 MODEL PREMIUM
Engine Immobiliser red-dot
Alarm System red-dot

MULTI-MEDIA EQUIPMENT

 MODEL PREMIUM
CD / AUX IN /USB red-dot
GPS SATELLITE NAVIGATION red-dot
8″ LCD Touch Screen red-dot
4 Tweeters + 4 Bass Speakers + 1 Center-Channel Speaker red-dot
Integrated Amplifier red-dot
DVD(second row) option
Automatic Adjustable Volume w/ Vehicle Speed red-dot
SD Card Slot red-dot

GLASS / REAR-VIEW MIRROR

 MODEL PREMIUM
Rear Demister red-dot
Tinted Glass red-dot
Rear View Mirror w/ Defrost and LED Turn Signal red-dot
Water Repellent Front Glass red-dot
Electro-Chromatic Rear View Mirror red-dot
Electrically Adjustable Door Mirror red-dot

LIGHTING

 MODEL PREMIUM
Automatic Headlights red-dot
25W Xenon Headlamps red-dot
Daytime Running Lights (DRL) red-dot
Electric Height-ajustable Headlamps red-dot
Front/Rear Foglamps red-dot
High Level Brake Light red-dot
Follow-Me-Home Function red-dot
Emergency Brake Hazard System red-dot
HAVAL Puddle Lamps red-dot
Atmosphere Mood Lights red-dot
Illuminated Entry Lamps red-dot
Side Step Lamps red-dot

AIR CONDITIONER

 MODEL PREMIUM
Three-zone Automatic Air Conditioning (Driver+Passenger+Rear) red-dot
Pollen Filter red-dot
Outside Temperature Indicator red-dot
3rd row Air Outlet red-dot

ALARM SYSTEM

 MODEL PREMIUM
Front Seatbelt Unfastening Warning System (Driver and Front Passenger) red-dot
Door Ajar Warning System red-dot
Keys Proximity Warning System red-dot
Over 120km/h Warning System red-dot
